1A PC Board EMI Filter Surface Mounting RFI Power Filter Pin Output Filter

Product Categories
Shenzhen Yanbixin Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1A PC Board EMI Filter Surface Mounting RFI Power Filter Pin Output Filter

  • 1
  • 2
  • 3

Brand Name : YBX

Model Number : YB11P1-3A-S

Certification : cUL, TUV, CQC, CE, ROHS,

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 15-25 days

Packaging Details : 56.5*28.5*22.5cm(one box)

Product name : P1 1A PCB EMI Filter

Rated voltage : 115V/250V

Rated current : 1A~6A

Input impedance : 50Ω

Application : Circuit board

Package type : Package type

Contact Now

1A PC Board EMI Filter Surface Mounting RFI Power Filter Pin Output Filter

Technical Specification:


Item1A PCB EMI Filter
ModelYB11P1-3A-S
Transfer FunctionLow Pass
Package TypeSurface Mount
Nominal Center Frequency10K-30MHZ
Insertion Loss60~90dB
Input Impedance50Ω
Rated Voltage125VAC 250VAC
Rated Current1A 3A 6A 10A
Environmental Temperature40°C
Temperature Range25 / 085 / 21
Operating Frequency50/60HZ
Line to Line1450VDC
Line to Ground2250VDC
Maximum Leakage Current115VAC/50HZ 0.3uA Max
MOQ100pcs
PriceUSD2~6.3/Meter
Lead Time5~15 weekday


Features:

--  Pin mounting from front side

--  There are a variety of parts and combinations to meet different customer's EMC tests

--  Customized products according to customer's requirements

Typical Applications:

1. Portable electrical and electronic equipment;

2. Medical equipment;

3. Test and measurement equipment;

4. Small and medium-sized machines and household equipment

Filter Selection Table:


Part No.CaseRated Currents (A)Output Connections
YB11P1-1AP11S: PIN
YB11P1-3AP13
YB11P1-6AP16
YB37P1-3AP13
YB37P1-6AP16

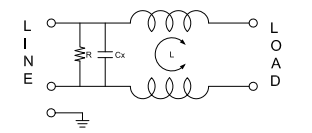

Electrical Schematic:



Mechanical Dimension(Unit: mm)



YB11P1-3A-S EMI Filter Picture:

1A PC Board EMI Filter Surface Mounting RFI Power Filter Pin Output Filter

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

1A PC Board EMI Filter Surface Mounting RFI Power Filter Pin Output Filter
